    Dilatoflex & Kledil Bellows

mercia flexibles  have been specialists in the manufacture and supply of a wide spectrum of flexible hose assemblies and expansion joint products for five decades. Amongst our range are :

  • Stainless Steel Corrugated Hose Assemblies :

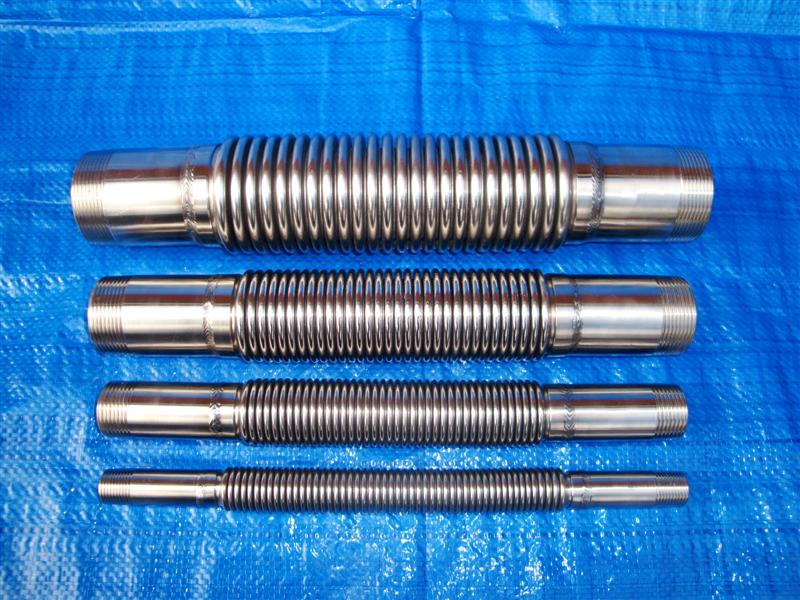

  • Stainless Steel Bellows Expansion Joints & Compensators :
    • Axial, Lateral, Angular & Universal Expansion Joints
    • Hinged & Gimbal Expansion Joints
    • H&V & Perimeter Heating Bellows
    • Multi-Ply Pump Bellows
    • High Temperature Flue Gas & Exhaust Expansion JointsDilatoflex M
  • Rubber Bellows Expansion Joints :
    • Official Agents for the EU-Manufactured Dilatoflex Range of Expansion Joints
    • Flanged DIN/PN, ANSI/ASA, British BS10, JIS, TW Tanker
    • EPDM, Hypalon, Nitrile/NBR/Buna-N/Perbunan, Chloro-Butyl, Natural Rubber,
      SBR, Neoprene/Chloroprene, Gum Rubber, FPM/FKM
    • Flexible Pump Connectors & Hump Hoses
    • Viton or PTFE Lined Expansion Joints for Chemicals & Solvents
    • DIN4809, DVGW, Steel Mesh or Aramid Reinforced
  • Emflex Range of Rubber Expansion Joints & Flexible Connectors
  • Braided Fan Coil & Chilled Ceiling Hoses in EPDM or Stainless Steel
  • Air & Dirt Separators, Dosing Pots, Buffer Vessels, & Low Loss Headers
  • Braided Automotive Stainless Steel Exhaust Bellows Flexibles
  • PTFE Bellows & PTFE Hose Assemblies
  • Expansion Joints in Duplex, Monel, Inco, Hastelloy & Avesta Grades
  • Trellex Hose, Flange Couplings & Gaskets
  • Trellex Gripstrip Rubber Seals and Trellex Dust Sealing Cloth
  • Stainless Steel & Galvanised Steel Interlock Stripwound Hose
  • Fabric Duct Expansion Joints & Gaiter Bellows
  • Food Grade Hygienic Hoses & Bellows
  • Composite Hoses for Chemical, Oil or Cryogenic Service
  • Rubber Air Spring Bellows, including :
    • Springride, Pneuride, Parker, and Norgren
    • Firestone, Contitech, and Torpress

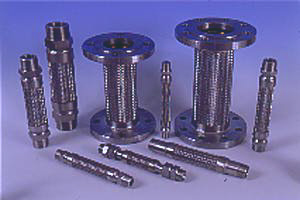

Stainless Steel Hose AssembliesDilatoflex K, NT & Kledil Expansion JointsDilatoflex NT ES High Temperature Bellows


mercia flexibles are UK & Eire agents for the Dilatoflex range of European Union manufactured rubber bellows expansion joints. The Dilatoflex range are available in rubber grades AR/CN, CC, GZ, YP, TE, AB, CTW, HH, & ES, plus drinking water & foodstuff approved grades DW & EPC, and include the : (click on underlined headings to download pdf file)

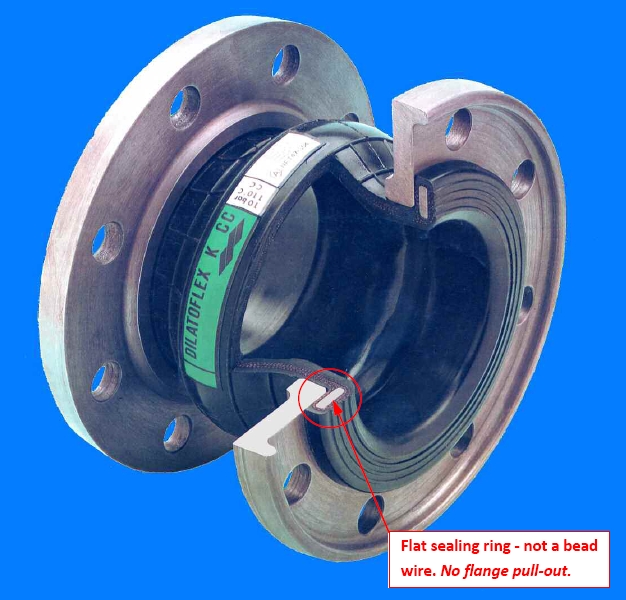

    * Dilatoflex K Range - Swivel Flanges - No-Flange-Pullout Design
             -
    Dilatoflex K Range Single Sphere - Dilatoflex K2 Range Double Sphere
             - Available rated upto 110 ºC
             - Available with Food & Drinking Water Approvals
             - DN32 (1¼" NB) to DN300 (12" NB)
             - Standard Length 130 mm
    * Dilatoflex T & Dilatoflex T2 Ranges - Swivel Flanges - No-Flange-Pullout Design
             -
    Dilatoflex T Range Single Sphere - Standard Lengths 150 mm / 200 mm
                     - DN32 (1¼" NB) to DN450 (18" NB)
             -
    Dilatoflex T2 Range Double Sphere - Standard Length 300 mm
                     - DN250 (10" NB) to DN450 (18" NB)
             - Available rated upto 110 ºC
             - Available with Food & Drinking Water Approvals
             - Replaces the discontinued
    Dilatoflex NT1 & NT2 ranges
    * Dilatoflex K/F1 Range - PTFE Lined Rubber Expansion Joints
             - Swivel Flanges - No-Flange-Pullout Design
             - DN32 (1¼" NB) to DN300 (12" NB)
    * Dilatoflex KP & Dilatoflex TP Ranges - High Pressure 25 BarG Rated - Swivel Flanges
             - No-Flange-Pullout Design
    Dilatoflex NT Construction
             - Available with Food & Drinking Water Approvals
             - DN32 (1¼" NB) to DN300 (12" NB)
    * Dilatoflex KT Range - With Integral Control/Tie Rods - Swivel Flanges
             - DN32 (1¼" NB) to DN300 (12" NB)

    *
    Dilatoflex K/CTW Range - Aluminium TW Swivel Flanges
             - For Use On Tank Wagons & Tankers

    *
    Dilatoflex T/ES Range
             - High Temperature :16 BarG @ 140 ºC and 25 BarG @ 70 ºC
             - Swivel Flanged Single Arch Expansion Joints - No-Flange-Pullout Design
             - Steel Mesh Reinforced
             - DN32 (1¼" NB) to DN200 (8" NB)
             - Replaces the discontinued
    Dilatoflex NT/ES range
    * Dilatoflex NT Range - Full Faced Rubber Flanged Expansion Joints
             - DN20 (¾" NB) / DN25 (1" NB) / DN32 (1¼" NB)
             - Available rated upto 110 ºC
             - Available with Food & Drinking Water Approvals

             - Larger sized NT1 & NT2 models are now discontinued & replaced by T & T2 ranges
    *
    Kledil Range - Available with Stainless Steel or Carbon Steel Male Screwed Threaded Ends
             - Available rated upto 110 ºC
    Kledil Construction
             - Available with Food & Drinking Water Approvals
             - DN20 (¾" NB) to DN50 (2" NB)
    * Dilatoflex F Range - Swivel Flanges - No-Flange-Pullout Design
            - DN300 (12" NB) to DN1200 (48" NB)
    * Dilatoflex N Range - Full Faced Rubber Flanges
            - DN500 (20" NB) to DN3000 (120" NB)

    *
    Dilatoflex M Range - Special Build - Full Faced Rubber Flanges
             - DN500 (20" NB) to DN2600 (104" NB)

    *
    Dilatoflex NT/MH & NT/MB Range - Military & Defense Approved
             - NATO Stock Numbered

    *
    Compensoflex - Economy Range Expansion Joints - Drinking Water Approved
             - With Screwed Unions DN15 (½" NB) to DN80 (3" NB)
             - With Swivel Flanges DN32 (1¼" NB) to DN300 (12" NB)
    * Dilatosteel - Flanged Stainless Steel Bellows Expansion Joints
    *
    Dilatoflex BT Range - Swivel Flanges - Untied & Tied
             - DN300 (12" NB) to DN1000 (40" NB)

    *
    Dilatoflex U, BP, BPO, OS, & BC1 Ranges
             - Rectangular & Dog Bone Expansion Joints
    *
    Flexil - Pinch Valve Sleeves


Dilatoflex K RangeDilatoflex K & Kledil RangeDilatoflex NT Range


We are exporters to over 80 countries, and industries supplied include :

    • Petrochemical & Pharmaceutical
    • Food & Agriculture
    • Combustion
    • Paper & Pulp
    • Chemical & Industrial
    • Heating & Ventilation, Air Conditioning & Refrigeration [HVAC]
    • Mining, Construction, Iron & Steel
    • Nuclear & Power Generation, Hydropower
    • Water & Sewage
    • Shipping, Naval, Automotive & Defence

mercia flexibles can also supply flexible rubber pump connectors from
Emflex, Stourflex, Masterflex, Jet, Elaflex ERV, Toraflex,
Willbrandt, Albion, AFAFlex, Stenflex & Teguflex.


Tied Stainless Steel Expansion JointDilatoflex K Grade YP BellowsHigh Temperature Exhaust Stainless Steel Expansion Joints


mercia flexibles  were previously located in Surbiton, Chessington and Leatherhead under the name mercia trading & manufacturing co. until our move to Ludlow in 1999.

mercia flexibles are also UK & Eire agents for Klematch P37 and P59
billiard, snooker, carom & pool cushions.
